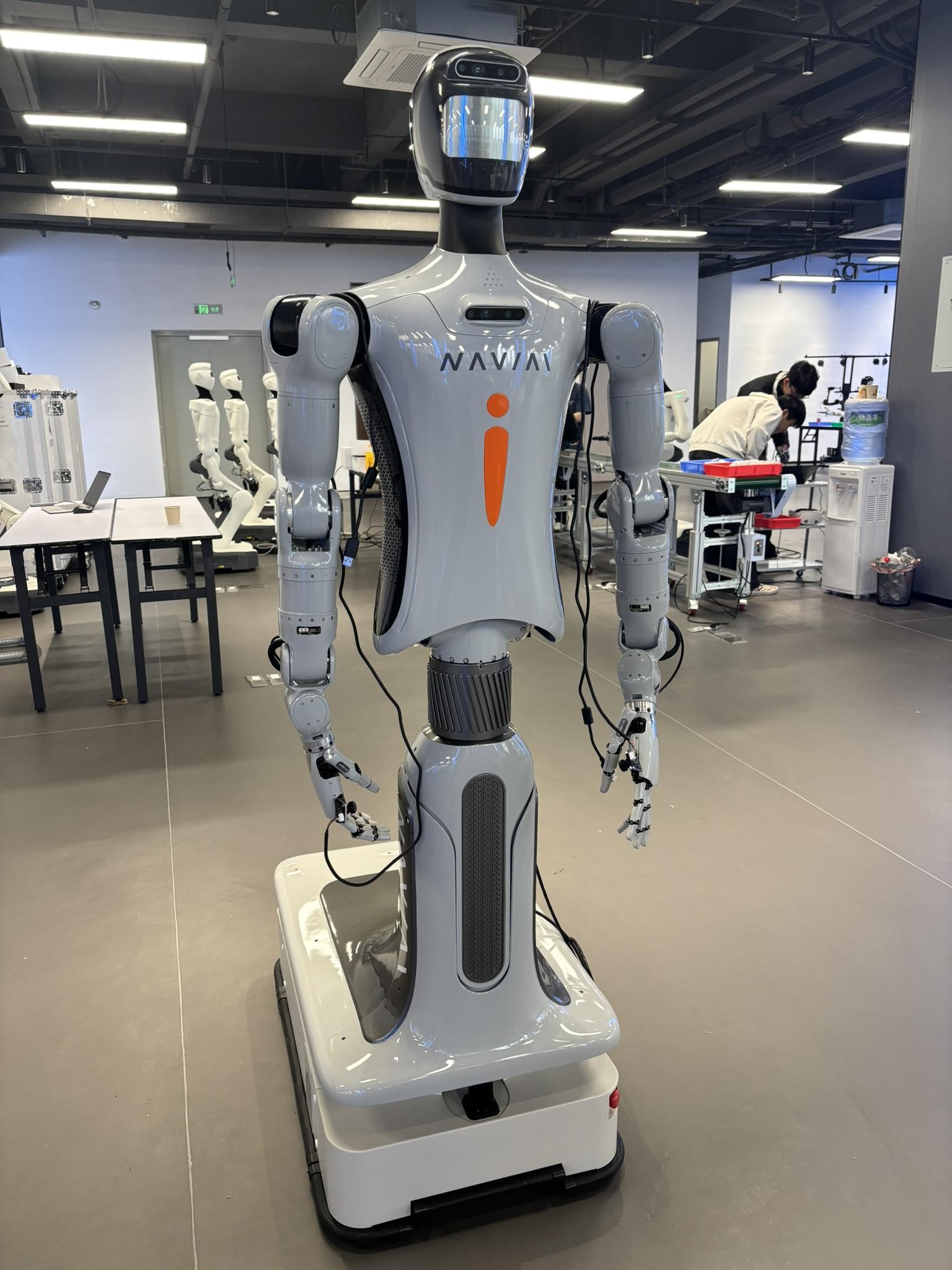

ZJ-Humanoid · Humanoid robot
WA1
2related scenarios
3related tasks
1records
0hours
Robot parameters
General7 parameters
- Model
- Zhejiang Humanoid WA1
- Data Collection / Teaching Mode
- Exoskeleton-based teleoperation
- Configuration
- Wheeled mobile base + dual arms + dexterous hands
- Compute Unit
- NVIDIA Jetson Orin
- Battery Life
- Approx. 2 hours
- Communication
- Wi-Fi, Bluetooth, Gigabit Ethernet
- Software Framework
- ROS Noetic
DOF5 parameters
- Total DOF
- 33 DOF
- Head
- 2 DOF
- Waist
- 3 DOF
- Arms
- 7 DOF × 2
- Hands
- 6 DOF × 2
End Effector3 parameters
- Type
- Five-finger dexterous hands
- Fingertip Force
- 10 N
- Joint Speed
- 150°/s
Vision (Head)6 parameters
- Camera Type
- RGB-D camera
- Resolution
- 1280 × 720 @ 30 Hz
- RGB FOV
- 69° × 42° (H × V)
- Depth FOV
- 87° × 58° (H × V)
- Working Range
- 0.3 – 3.0 m
- Depth Accuracy
- < 2% @ 1 m
Force Feedback1 parameter
- Whole-Body Force Control
- Not supported
Tactile Sensing1 parameter
- Fingertip Tactile Sensors (Optional)
- Single-point fingertip sensors
Teleoperation1 parameter
- Teleoperation Device
- Exoskeleton
Data Interface1 parameter
- Middleware / API
- ROS 1 / SDK
Data Output1 parameter
- Data Types
- Joint states, camera images, end-effector poses
End effectors
Dex hands or grippers configured for collection with this robot model.
Five-finger dexterous hands0 parameters
Collection-team confirmed dexterous-hand model.
No parameters listed.
